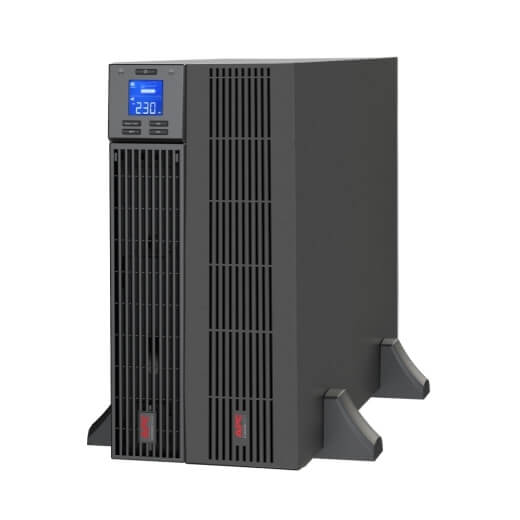

Weight 78 kg Dimensions 22 × 43.8 × 61.5 cm Brand APC Model No. SRV6KRIL-IN Topology Online UPS Backup Time Hlaf Load : 16 Mins. | Full Load : 6 Mins. No. of Batteries 12V/9AH X 20 Nos. (SRV240RBP-9A) Builtin Battery Capacity 12V / 9AH Nominal Input Voltage 230V Waveform Type Sine wave Input frequency 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Interface Port(s) DB-9 RS-232, SmartSlot Nominal Output Voltage 230V Output Power Capacity 6.0kWatts / 6.0 kva In Box Accessories Computer Interface Cable, Manual, Output Power Cable, Power Chute Software, UPS, USB Interface Cable, Warranty Card Warranty 2 Years Onsite Warranty Special Features 88% effeciencyon full load, Rackmountable ( Need to buy rackmount kit seperately), Multi-Function LCD Status Control Panel Intelligent Slot – Mini Slot,
Surge Energy Rating : 600 Joules, Typical Recharge Time 4 Hours to Recover to
90% Capacity, Half Load Run Time – 10 Min
Full Load Run Time – 3 Min, DB-9 RS-232 Supports Windows 2000/
2003/XP/Vista/2008/7/8 Linux, Unix & MAC
