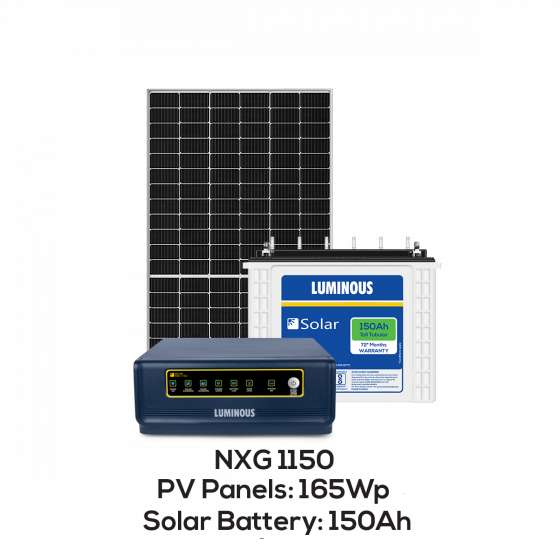

Solar Off Grid Combo - 850 VA (BIS Certified)
Solar Inverter - NXG 1150
Capacity - 850VA Operating Voltage 90V-290V
Max Supported Panel Power - 12V upto 850 Wp
Charge Controller Rating - 50 Amp
24 Month Warranty
Pure Sine Wave Solar Inverter
Solar Battery - LPTT12150H
150 Ah Rated Capacity @ C10, 12V
Warranty - 72 Months
Tubular plate Technology - Next generation tall tubular battery with better charge acceptance and longer backup
No of Batteries in Combo - 1
Solar Panel - 165W / 12V
Capacity - 165W / 12V, Polycrystalline Solar Panel
Voltage: Voltage at Max Power (Vmp) - 18.65V, Open Circuit Voltage (Voc) - 22.84V
Current: Current at Max Power (Imp) - 8.85A, Short Circuit Current (Isc) - 9.55A
25 years performance warranty
Online Availability Yes
Online Availability Message Available Online
Buying Guide
Buying Guide
Net Weight (Kg) Inverter- 11.8 kg, Battery- 60 kg (filled weight) Panel- 11.5 kg
Country of Origin India
Warranty Inverter- 24 months, Battery- 60 months, Panel- 60 Months
Wattage (Wp) 165 Wp
Capacity 150H
Panel Type PolyCrystalline
Short Circuit Currrent, Isc (A) 9.55 A
Product Dimensions (L*W*H) Inverter- 32.0L*30.2B*13.0H CM, Battery- 50.2L*19.1B*44H CM, Panel- 148.0L*67.0B*3.4H CM
Max. supported panel power (Wp) 165 Wp
Max Solar Panel Voltage (V) 18.65 V
