Model

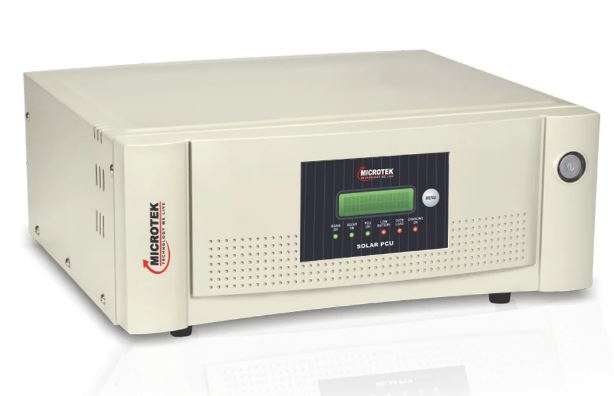

SOLAR PCU 2035/ 24V

Capacity (Rated Power)

1735VA / 24V

Capacity (Maximum PV Power support)

1200 WP

Input

Input Voltage (Standard Range)

100 V ~ 300 V

Input Voltage (Narrow Range)

180V ~ 260 V

Nominal Input Battery Voltage

24 V

Output

Output Frequency

50 Hz ± 0.5 Hz

Output Waveform

Pure Sine Wave

Technology

Solar Charger Type

PWM

Max. Solar Panel Current

35 Amps

Mains Re-Connect Voltage

23.2 V ±0.3 V DC

Mains Dis-Connect Voltage

28.8 V ± 0.3 V DC

Solar UPS Overload

110%

Solar UPS Short Circuit

300%

Solar UPS Transfer Time

< 12 msec

Grid Chg. Enable Mode

Luxury Mode

Grid Chg. Disable Mode

Economy Mode
