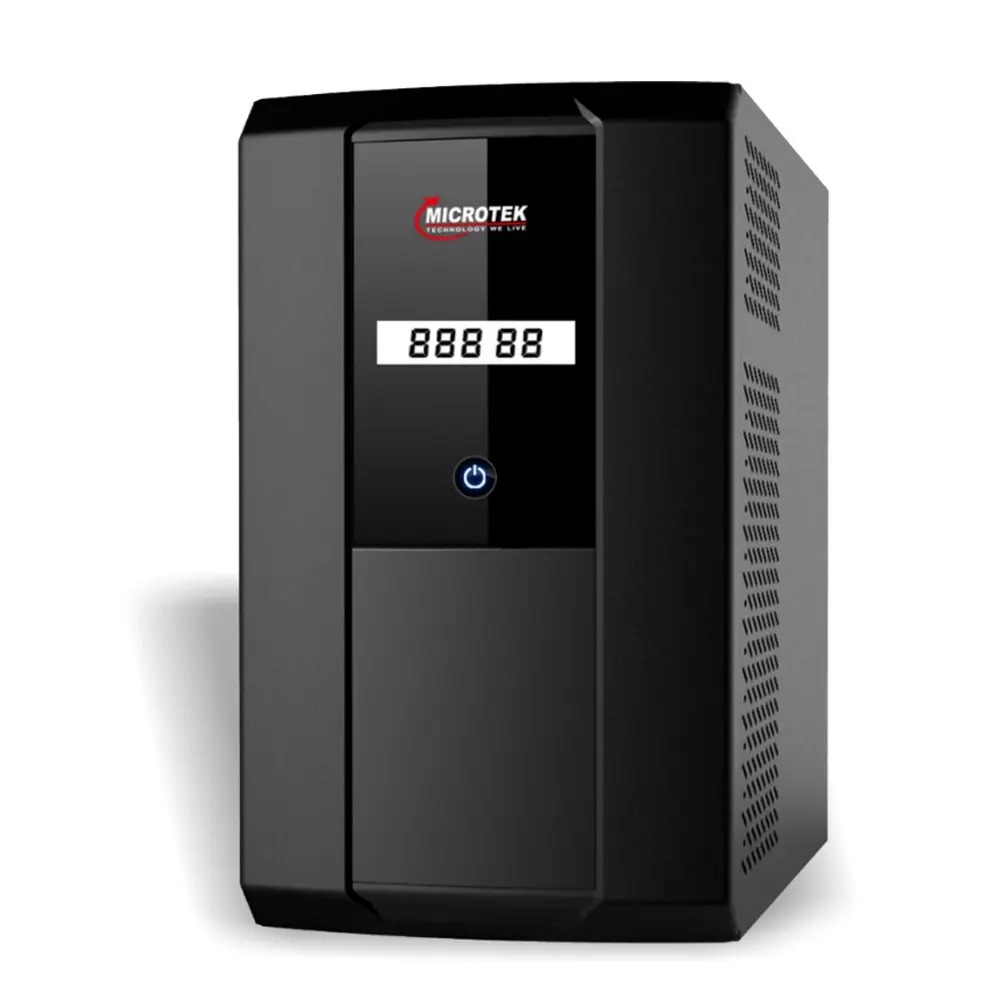

| MODEL UPS | JM SW 2500+/24V |
|---|---|
| Capacity / Rating | 2KVA / 1600W |
| Output Waveform /Power Factor | Pure Sinwave / 0.8 |
| Nominal Battery Voltage | 24V DC |
| Battery Charger | Boost Based PWM Controlled Multistage ATM (Automatic Trickle Mode) Charging |
| Recommended Battery Type / Battery AH | Tall-Tubular, Flat-Plate Lead Acid Battery / (100AH-180AH)** |
| Output Frequency / Output Voltage (Battery Mode) | 50Hz+0.5Hz / 220+10% |
| Maximum Charging Current | 15A(+3A) |
| Standard Input Voltage Range (Inverter Mode) | 80V~295V |
| Narrow Input Voltage Range (UPS Mode) | 180V~265V |
| Transfer Time From Mains to Battery (UPS Mode) | <15ms |
| Input Brown Out Voltage | 80V+10V |
| Mains Bypass / Switch-Over | Rotary Bypass Switch / Automatic From Main>Backup & Backup>Mains |
| Seprated O/P With TDR | N/A |
| UPS Overload / Short Circuit Protection | >105% / >300% |
| Efficiency (Battery Mode) | >80% |
| Protection / Display | Low Battery Voltage, Battery Overcharge, Over Temp., Smart Overload Sense & Short Circuits / LCD Display |
| Environmental Parameters | Operating Temprature: 0~45*C / Acoustic Noise at 1 Mtr: <60dB Relative Humidity: MAX 95% Non Condensing / Thermal Management: Integrated cooling (Fan & Heat sink) |
| Dimentions (LxWxH) mm | 445x320x460 mm |
| Gross Weight | 20 Kgs |
