India’s Most Smartest & Intelligent LCD UPS with Micro Computer Inside.
INTELLI Pure Sinewave Output safe for sensitive appliances & Noiseless Operations.
5 Stage Intelligent Battery charging algorithm.
Advance circuits Breaker for Protections.
Pure Sine Wave Output.
PWM Controlled Multistage ATM (Automatic Trickle Mode) Charging.
Display Indications (Status & Fault)
Smart Overload Sense And Short Circuits Protection
Easily Serviceable & Auto Reset Features.
Mail Input Voltage Range Selection.

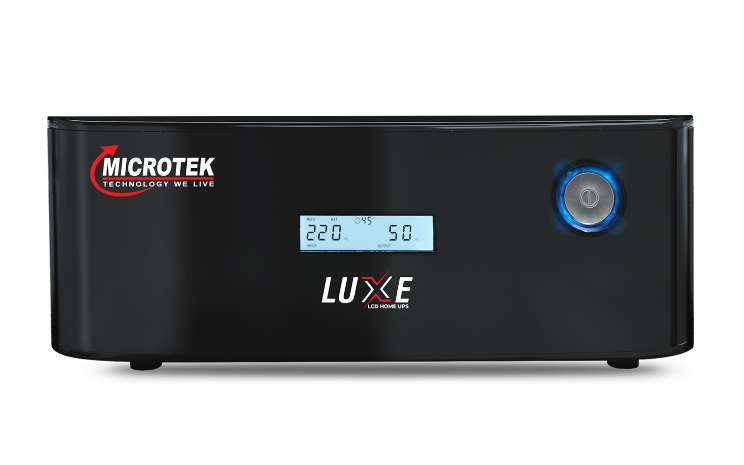

UPS LUXE SINEWAVE 1000 (800VA-12V)
INPUT VOLTAGE
INVERTER MODE: 100V~300V
UPS MODE: 180V~260V
VA/WATTAGE
800VA / 640W
OUTPUT VOLTAGE ON MAINS MODE
SAME AS INPUT
OUTPUT VOLTAGE / FREQUENCY ON UPS MODE
210V + 10% / 50Hz + 0.1Hz
SWITCHING FROM MAINS TO UPS & UPS TO MAINS
AUTOMATIC
OUTPUT WAVEFORM ON MAINS MODE
SAME AS INPUT
OUTPUT WAVEFORM ON UPS MODE
PURE SHINEWAVE
BATTERY CHARGING CURRENT
Constant Chaging approx 10% of the rated battery Current in AH
CHARGER
Power Factor Controlled Boost Technology
EFFICIENCY
>80%
UPS OVERLOAD / UPS SHORT CIRCUIT
110% / 300%
UPS TRANSFER TIME
< 15msec.
BROWN OUT MAINS VOLTAGE
100V + 40V
TECHONOCLOGY
Micro Controller Based Intelligent control Design
AUTO RESET FEATURE
Yes
OPERATING TEMPERATURE
0~45°C
DIMENTION LxWxH (MM)
382 x 339 x 193 mm
