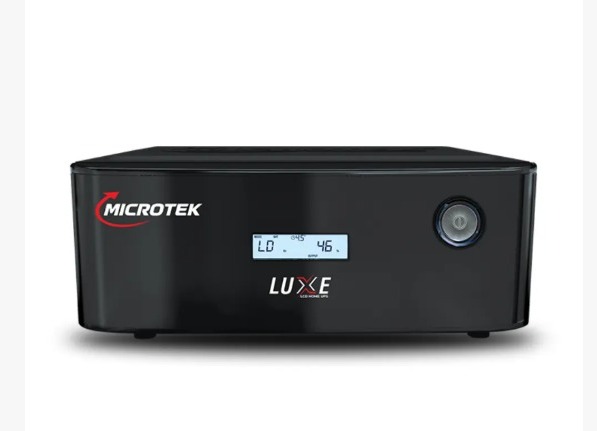

| UPS LUXE SINEWAVE 1200 (950VA-12V) | |
|---|---|
| INPUT VOLTAGE | INVERTER MODE: 100V~300V |
| UPS MODE: 180V~260V | |
| VA/WATTAGE | 950VA / 760W |
| OUTPUT VOLTAGE ON MAINS MODE | SAME AS INPUT |
| OUTPUT VOLTAGE / FREQUENCY ON UPS MODE | 210V + 10% / 50Hz + 0.1Hz |
| SWITCHING FROM MAINS TO UPS & UPS TO MAINS | AUTOMATIC |
| OUTPUT WAVEFORM ON MAINS MODE | SAME AS INPUT |
| OUTPUT WAVEFORM ON UPS MODE | PURE Sinewave |
| BATTERY CHARGING CURRENT | Constant Chaging approx 10% of the rated battery Current in AH |
| CHARGER | Power Factor Controlled Boost Technology |
| EFFICIENCY | >80% |
| UPS OVERLOAD / UPS SHORT CIRCUIT | 110% / 300% |
| UPS TRANSFER TIME | < 15msec. |
| BROWN OUT MAINS VOLTAGE | 100V + 40V |
| TECHNOLOGY | Micro Controller Based Intelligent control Design |
| AUTO RESET FEATURE | Yes |
| OPERATING TEMPERATURE | 0~45°C |
| DIMENSION LxWxH (MM) | 382 x 339 x 193 mm |
