India’s Most Smartest & Intelligent LCD UPS with Micro Computer Inside.

INTELLI Pure Sinewave Output safe for sensitive appliances & Noiseless Operations.

5 Stage Intelligent Battery charging algorithm.

Advance circuits Breaker for Protections.

Pure Sine Wave Output.

PWM Controlled Multistage ATM (Automatic Trickle Mode) Charging.

Display Indications (Status & Fault)

Smart Overload Sense And Short Circuits Protection

Easily Serviceable & Auto Reset Features.

Mail Input Voltage Range Selection.

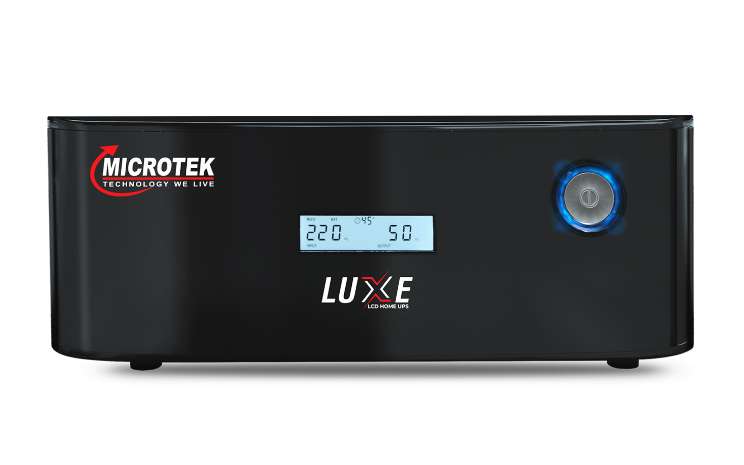

Microtek UPS LUXE Sinewave Model Based on Micro Computer Based INTELLI PURE SINWAVE UPS is Designed Using Latest State-of-the-art Technology for Better performance and High Reliability. The INTELLI Pure Sinewave Technology used enhances the life of the battery and Minimum effort has to be put for maintenance.

UPS LUXE SINEWAVE 1400 (1100VA-12V)

  INPUT VOLTAGE

  INVERTER MODE: 100V~300V

  UPS MODE: 180V~260V

  VA/WATTAGE

  1100VA / 825W

  OUTPUT VOLTAGE ON MAINS MODE

  SAME AS INPUT

  OUTPUT VOLTAGE / FREQUENCY ON UPS MODE

  210V + 10% / 50Hz + 0.1Hz

  SWITCHING FROM MAINS TO UPS & UPS TO MAINS

  AUTOMATIC

  OUTPUT WAVEFORM ON MAINS MODE

  SAME AS INPUT

  OUTPUT WAVEFORM ON UPS MODE

  PURE SHINEWAVE

  BATTERY CHARGING CURRENT

  Constant Chaging approx 10% of the rated battery Current in AH

  CHARGER

  Power Factor Controlled Boost Technology

  EFFICIENCY

  >80%

  UPS OVERLOAD / UPS SHORT CIRCUIT

  110% / 300%

  UPS TRANSFER TIME

  < 15msec.

  BROWN OUT MAINS VOLTAGE

  100V + 40V

  TECHONOCLOGY

  Micro Controller Based Intelligent control Design

  AUTO RESET FEATURE

  Yes

  OPERATING TEMPERATURE

  0~45°C

  DIMENTION LxWxH (MM)

  382 x 339 x 194 mm
