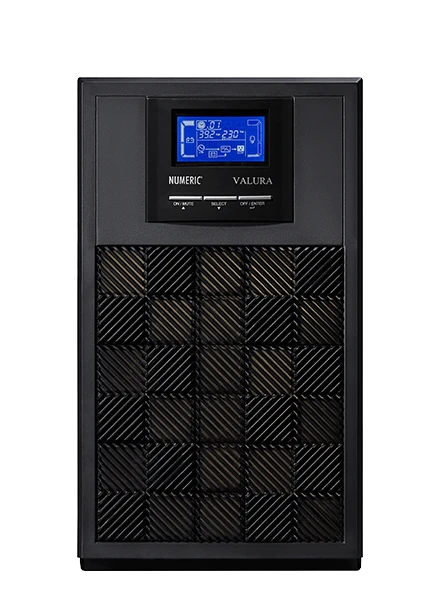

Numeric Online Ups Valura 1KVA

Warranty - 2 Years Warranty

   :

15,000

  • Brand New & 100% Genuine
  • Credit card , Debit card, Google Pay,Paytm and Netbanking
  • Delivered in same day
  • Free Delivery within 20 km
  • Exchange for old batteries





Review this product

Write a Review

General
  • Isolation Transformer: Yes
  • Overall Efficiency: FM > 87.0% , FMI >78%
  • Technology: On-line double conversion VFI-SS-111
Input Parameters
  • Input Voltage: FM 110 - 280 Vac / FMI 120-280 Vac
  • Input Power Factor: > 0.99
  • THDi: < 10%
  • Input Frequency Range: 40-70 Hz
DC Characteristics
  • Battery Connection: Series
  • Number of Batteries: 3 No's
Battery Type
  • 12 V Tubular
  • VRLA
Output Parameters
  • Output Frequency: 50 /60 Hz (Adjustable from front panel)
  • 105% - 110%: 10 min
  • 111% - 130%: 2 min
  • 131% - 150%: 30 sec
  • Output Voltage (in VAC): 220,230,240 V
  • Crest Factor: up to 3:1
  • Output frequency tolerance: ±0,1%Synch with Mains; ±0,01% Free Run
  • Output power factor: 0.8 leading to 0.8 lagging
  • THD of output voltage: < 2% at full linear load
Protections
  • Ingress Protection: IP 20
  • Input Low / High Protection: Yes
  • Output Low / High Protection: Yes
Communication Options
  • Modbus
  • SNMP
  • Dry Contacts
  • USB
  • Control Panel Display
Environment Features
  • Operating Temperature: 0 - 40 °C (Recommended temperature for longer Battery Life: 20-25°C)
Certificates
  • PEP
Compliance
  • IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3
